PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems

Brand Name : LB

Model Number : LB-63

Certification : CE/ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : Negotiable（USD EUR）

Payment Terms : L/C,T/T

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WOKING DAYS

Packaging Details : NORMAL PACKAGE

Extrudertype : Single Screw Extruder

Automatic : Full Automatic

Cooling Method : Water cooling tank

Capacity Range : 500kg/h

Application : Production of PPR pipes for plumbing and heating systems

Powersupply : 380V, 50Hz, 3-phase

Power : 30KW

Machinedimensions : Length 10m x Width 1.5m x Height 2m

Contact Now

PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems

Extrusion Process

Multi-Layer pipes are produced by co-extrusion pipe line. The production line is a kind of special craft processes which can save the cost of raw material and make a series of pipes with functional features.

For Example, in order to save the cost of raw material, we can use the recycled material which is to be the middle layer to produce the PE thick wall pipes. For hot water supply pipes, the production line could not only have the PP-R Layer but also increase some other structure Layer including glass fiber, which attach the pipe to some excellent application features.

Complete Extrusion Line Components

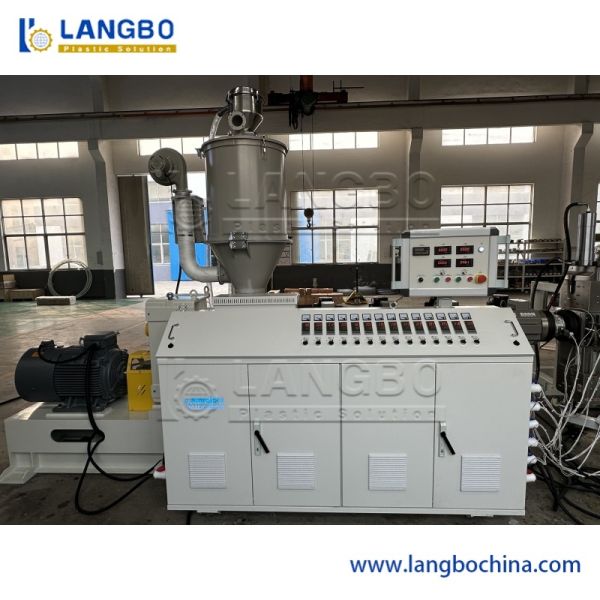

Single screw extruder
Co-extruder: For manufacturing marking lines on pipes or creating multi-layer pipes
Die head
Vacuum tank: Designed with single or double vacuum chambers based on diameter requirements
Cooling tank: Configured with one, two, or three tanks depending on diameter
Haul-offs: Available in double, three, four, six, eight, ten, or twelve haul-offs configurations based on diameter
Cutter: Options include no-scraps cutter or planetary cutter designs
Coiler/Tipping chute

Specifications

Model	Pipe Diameter (mm)	Extruder	Extruder Power (kw)	Capacity (kg/hr)
LB-63	16-63	SJ65/33	55AC	150
LB-110	20-110	SJ75/33	75AC	180

PPR Pipe Making Machine Solving Deformation And Fitting Issues In Hot Water Systems
